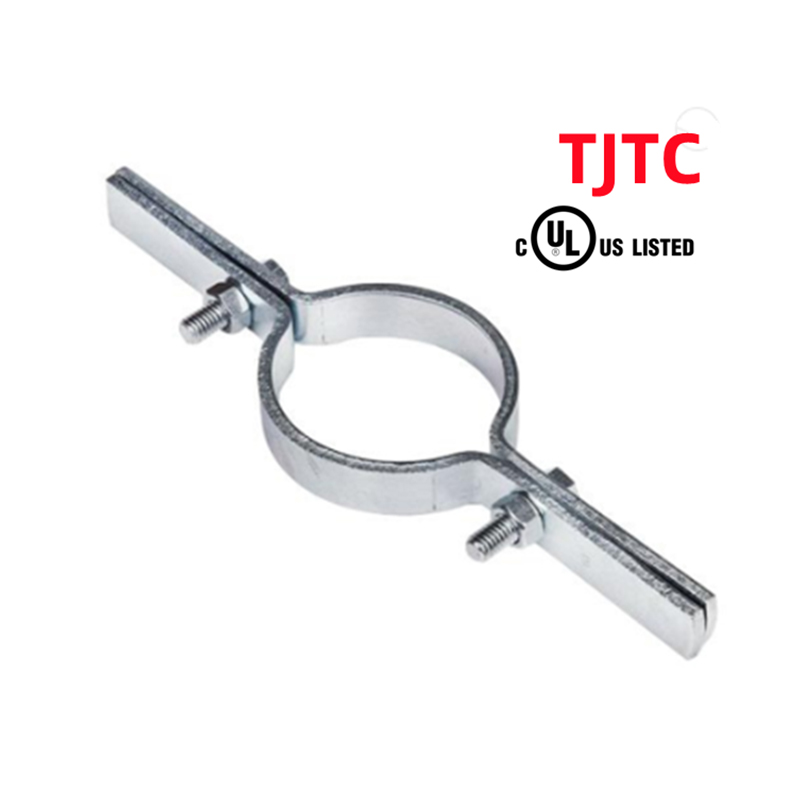

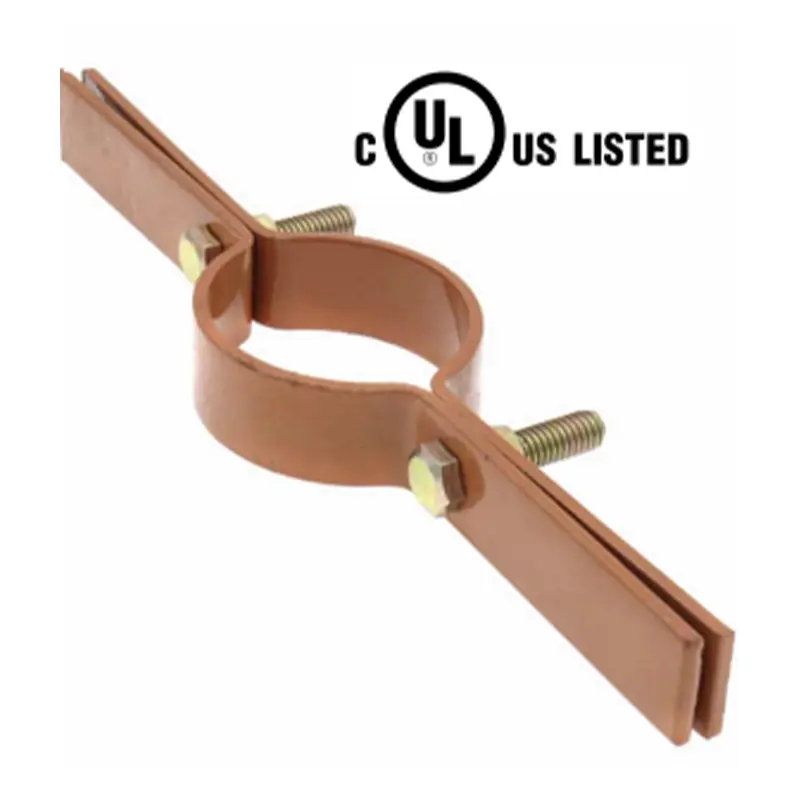

Carbon Steel Riser Clamps Casting Strut System Clamps and Hangers for Pipes
product description
Simple installation allows for quick and efficient setup, which is critical in a fast-paced commercial environment. Our riser clamps are designed to be strong and not only support vertical pipes, but also minimize the risk of damage during operation, ensuring long-term performance.
| Size(inches) | A(mm) | B | C(mm) | D (mm) |
| 1/2 | 216 | 3/8" | 3*25 | 59 |
| 3/4 | 227 | 3/8" | 3*25 | 68 |
| 1 | 227 | 3/8" | 3*25 | 71 |
| 1-1/4 | 240 | 3/8" | 3*25 | 83 |
| 1-1/2 | 251 | 3/8" | 3*25 | 95 |
| 2 | 260 | 3/8" | 4*30 | 106 |
| 2-1/2 | 280 | 3/8" | 4*30 | 124 |
| 3 | 298 | 3/8" | 4.5*30 | 140 |
| 3-1/2 | 321 | 1/2" | 4.5*30 | 168 |
| 4 | 330 | 1/2" | 6*30 | 168 |
| 5 | 368 | 1/2" | 6*30 | 210 |
| 6 | 406 | 1/2" | 5.5*50 | 244 |
| 8 | 464 | 5/8" | 10*50 | 311 |
Detailed Images
Our riser clamps are available in a variety of sizes, materials, and finishes and can be customized to the specific needs of your project. Whether you are working with large industrial pipes or small commercial systems, we have the right clamp to ensure a secure installation. The versatility of our products makes them an essential component for contractors, engineers, and facility managers to optimize their piping infrastructure.
Simple installation allows for quick and efficient setup, which is critical in a fast-paced commercial environment. Our riser clamps are designed to be strong and not only support vertical pipes, but also minimize the risk of damage during operation, ensuring long-term performance.
Related Products
A pipe hanger or pipe support is a mechanical support component that transfers the load from a pipe to the supporting structures. There are numerous types of pipe hangers, such as: clevis hangers, loop (or band) hangers,and split ring. TJTC supplies all these types of pipe hanger supports to Plumbing & Construction contractors, offering a variety of material options. Choose your clevis hanger, loop hanger, assembly from and Carbon Steel. We also offer a selection of material finishes and coatings.

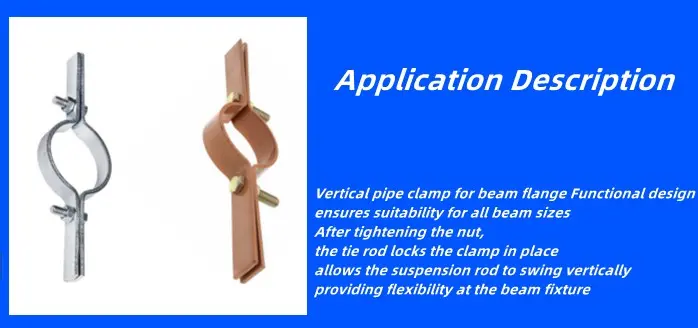

Application
Choose our riser clamps for your next project and experience the perfect combination of quality, safety, and versatility. With our commitment to excellence and customer satisfaction, you can be confident that you are investing in a product that will improve the reliability of your piping system for years to come. Elevate your installation with our best-in-class riser clamps today!

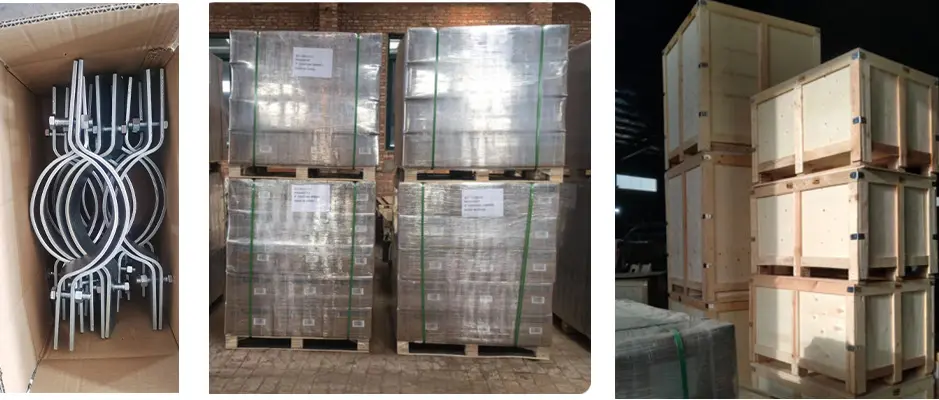

Packaging and Transportation
Certification

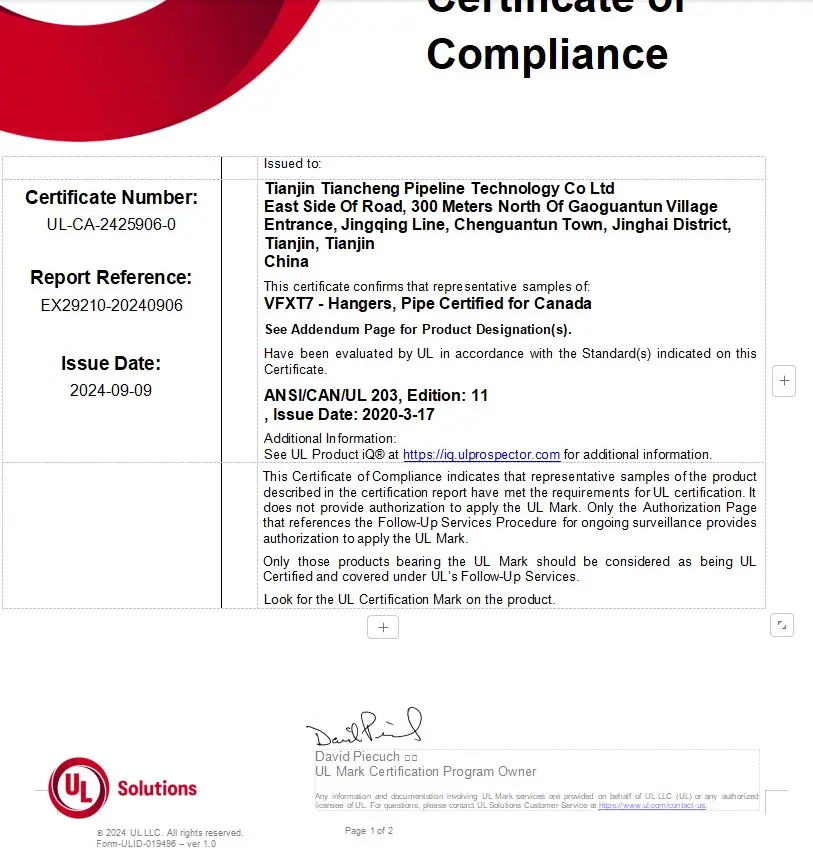

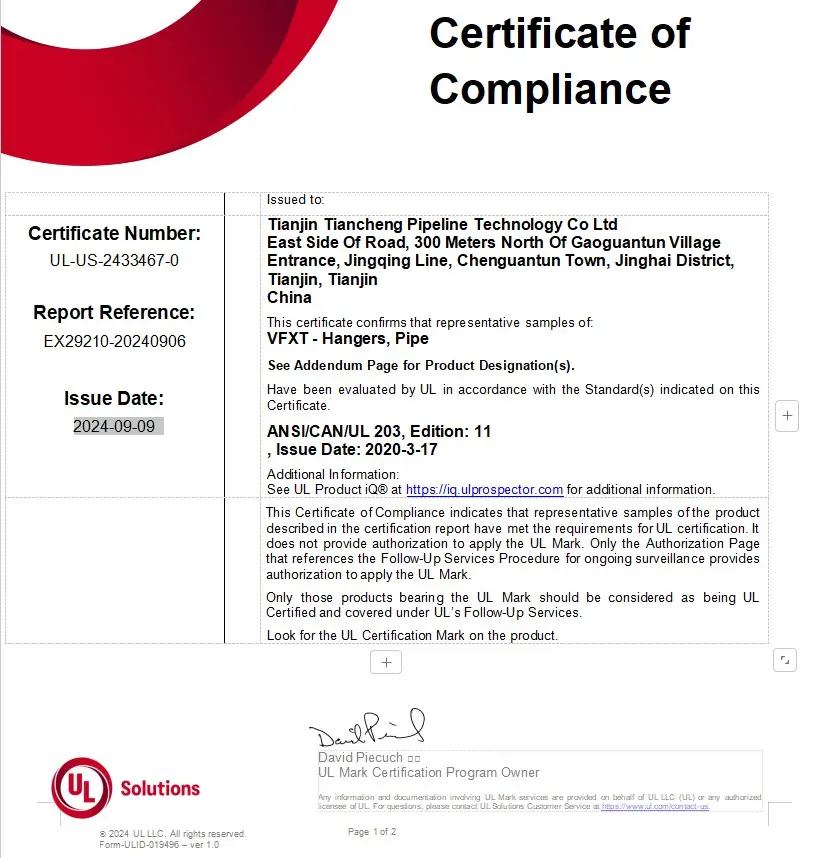

Our riser clamps are not only durable, but also UI and FM approved to meet the highest industry safety and reliability standards. This certification guarantees that our clamps are suitable for critical applications, giving you peace of mind that your installation meets regulatory requirements.
description2
